Data as an Asset (or an Expensive Liability)

Think about the massive influx of data landing in your ecosystem right now. Between real-time APIs, IoT devices, mobile applications, and third-party integrations - it is an endless flood. But possessing data doesn't automatically mean possessing value. Without a clear modeling strategy, raw data becomes an expensive liability rather than an asset, resulting in high infrastructure costs and slow insights. But how do we fix this? The solution lies in data modeling—the architectural blueprint for your data estate that bridges the gap between chaotic, unorganized raw data and structured, business-ready insights. By properly structuring your data, you transform a cluttered digital warehouse into an agile asset that can be easily leveraged across evolving business use cases. In this article, we break down the four core methodologies dominating the data landscape—Inmon, Kimball, Data Vault, and One Big Table (OBT)—giving you a practical guide to choosing the right framework for your business needs.

The Classics: Inmon vs. Kimball

For decades, data engineering debates have been anchored by two foundational schools of thought. While both aim to bring order to enterprise data, their execution strategies could not be more different.

The Inmon Approach

The Inmon methodology is a top-down approach focusing on the entire enterprise scope before addressing specific business needs. It builds a centralized data warehouse using Third Normal Form (3NF) normalization. In simple terms, normalization means systematically eliminating data redundancy. You isolate related attributes into separate tables—separating product details from product categories, for example—so every piece of information lives in exactly one place.

Benefits & Limitations
Organizing your data with this level of precision brings some undeniable advantages. Among them is the creation of a single source of truth; because data redundancy is completely minimized, database updates become highly efficient. Furthermore, this guarantees robust data governance, which ensures the core model scales in a highly structured, predictable way. However, this rigor introduces two major friction points. First, because it requires significant up-front planning, Inmon is notoriously slow to deliver initial business value. Second, daily query performance takes a heavy hit. Have you ever tried running a quick business report when your data is splintered across dozens of normalized tables? It requires navigating dense networks of SQL joins, which severely drags down query speeds.

The Kimball Approach

To bypass long up-front planning and complex query joins, the Kimball methodology takes the opposite path: a bottom-up approach. It starts directly with specific business processes—like a sales transaction or a marketing click—making it highly intuitive for business users. This method relies on dimensional modeling, structuring data into a star schema where a central Fact Table (holding quantitative metrics like total sales) is surrounded by denormalized Dimension Tables (providing context like customer names, dates, and locations).

Benefits & Limitations
Designing your data this way makes it fast to query and aligns perfectly with what modern BI tools like Power BI or Tableau expect. Because the dimensions are denormalized—meaning they are flattened out—users can get answers almost instantly without having to navigate dense networks of complex SQL joins. However, this agility comes with a catch. Because the data is denormalized, it introduces high redundancy across your system. While a Kimball architecture works beautifully for isolated departments like marketing or sales, it can quickly become fragile and difficult to maintain when you try to scale it across an enterprise with constantly changing requirements.

The Modern Evolutions: Data Vault & One Big Table

While traditional frameworks remain foundational, the rise of modern cloud infrastructure has catalyzed the evolution and adoption of alternative modeling practices designed to meet massive-scale environments and contrasting architectural demands.

Data Vault

Data Vault addresses a critical challenge brought on by modern data scale: how do you ingest hundreds of fast-moving, unpredictable streams without triggering a domino effect that fractures your existing models? Originally conceived in the early 2000s, this uncertainty-driven architecture saw a surge in popularity with the rise of cloud computing. Its modern iteration is uniquely optimized for cloud data warehouses, swapping traditional sequential keys for hash keys to allow for massive, simultaneous data loading. Its foundational rule is that records are strictly append-only; data is never updated or deleted, guaranteeing a total historical audit trail. By keeping raw data intact and pushing complex business logic downstream, it relies on three core structural pillars: Hubs (core business keys), Links (the relationships between them), and Satellites (the descriptive context and history).

Benefits & Limitations
Adopting this structure offers flexibility for data teams. Because business keys, relationships, and context are completely decoupled, engineers can ingest data from entirely new systems in parallel without ever needing to refactor existing tables. The trade-off, however, is a spike in structural complexity. Because the data is so heavily fragmented, a business analyst attempting to write a direct query would have to navigate a labyrinth of joins across dozens of separate Hubs, Links, and Satellites just to check yesterday's sales performance. This explosion of tables makes Data Vault far too complex for direct business consumption, requiring a steep learning curve and making a dedicated presentation layer downstream absolutely mandatory.

One Big Table (OBT)

If Data Vault represents ultimate modularity, One Big Table (OBT) sits at the exact opposite end. As the name implies, this model involves flattening everything into a single, massive, completely denormalized table tailored to a specific reporting need or business use case. While once considered bad practice due to storage costs, OBT has experienced a resurgence with cloud data warehouses like Google BigQuery. Because these modern engines are column-oriented, they only scan the specific columns requested by a query rather than reading entire rows. This technological shift completely eliminates the performance penalties that older databases suffered under denormalization.

Benefits & Limitations
The result is exceptionally fast query speeds. Since all data is pre-joined, it radically simplifies data consumption for end-users, who can pull insights instantly without ever having to manage complex joins or track historical changes. However, optimizing so heavily for the consumption layer shifts the burden back onto the data engineering team. Because data redundancy is exceptionally high, long-term maintenance is nearly impossible to manage at scale. If an upstream business rule changes, engineers can't just fix a single isolated table; they often have to rebuild and reload the entire massive dataset from scratch. This rigidity dramatically reduces backend agility, making OBT a poor fit for fluid, complex, or exploratory data logic.

Production-Hardened Proof: The Databricks Hybrid Architecture

To prove that choosing between these frameworks is a false dichotomy, we look at how these patterns operate in production. For a large enterprise client requiring both highly governed, auditable financial records and sub-second performance analytics, our practice built a unified data platform on Databricks.

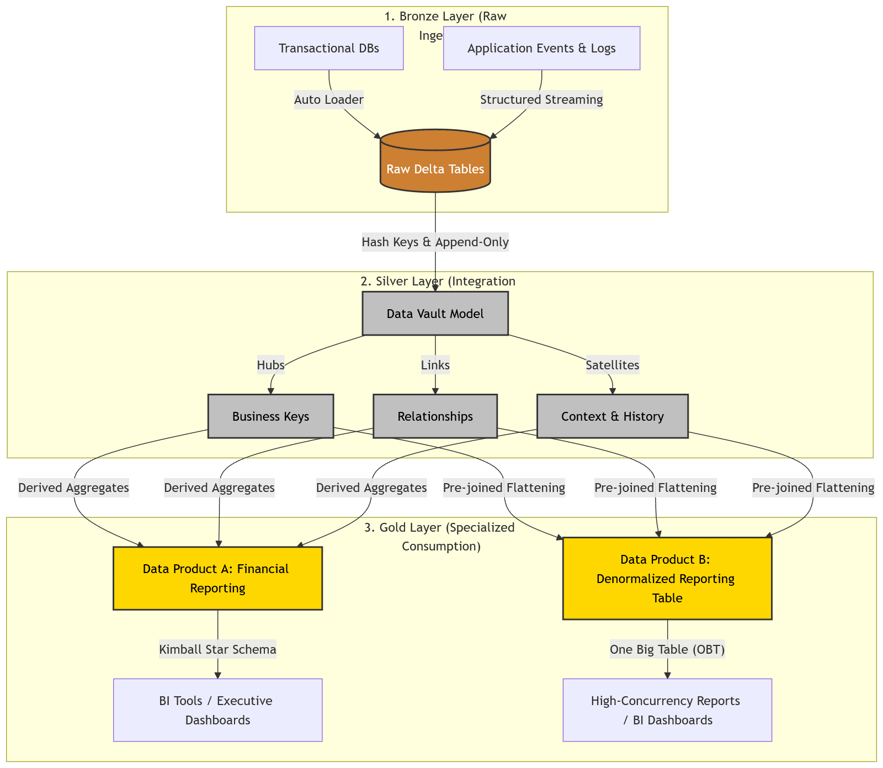

We leveraged a 3-tier data maturity model (Bronze, Silver, Gold), mapping specific modeling methodologies to the data lifecycle where their unique strengths could be maximized.

1. The Bronze Layer: Ingesting the Chaos

Raw data is ingested continuously using Databricks Auto Loader and Structured Streaming, landing as append-only Delta tables. At this stage, absolutely no schema modification or normalization occurs. This ensures that we capture the source truth with zero ingestion lag.

2. The Silver Layer: Enterprise Integration via Data Vault

In the Silver layer, we need clean, historical, and integrated data. However, the client's upstream source systems were volatile, with frequent API updates and changing database schemas.

Instead of traditional Kimball normalization, we implemented a Data Vault architecture directly on Databricks Delta Lake:

• The Mechanics: We decoupled business keys (Hubs), relationship maps (Links), and point-in-time descriptive states (Satellites).
• The Databricks Advantage: We leveraged Delta Lake’s ACID transactions and transaction log to manage parallel, high-throughput micro-batch ingestion directly into the Vault without read/write locking or ingestion bottlenecks. Hash keys (computed upstream at ingestion using MD5/SHA-256) eliminated the need for complex, serial database lookups.
• The "So What?": By implementing Data Vault in Silver, we separated the technical ingestion pipeline from business formatting. Upstream structural changes required zero database migration downtime, and the client gained a 100% compliant, append-only historical record.

3. The Gold Layer: Decoupled, Application-Specific Data Products

Because a raw Data Vault is too complex for direct analyst access, the Gold Layer serves as the presentation environment. We do not apply a single, unified modeling standard here. Instead, we designed separate, decoupled data products customized to the technical and business constraints of each specific consumer group:

Data Product A (Financial & Executive Reporting):

• The Challenge: Complex, cross-department financial analysts required highly consistent, governed definitions of metrics (like annual contract value) with intuitive querying paths in Power BI.
• The Implementation: We transformed the Silver Data Vault into a Kimball Dimensional Star Schema. Common dimensions (e.g., Dates, Locations, Customers) were built as conformed, shared tables, minimizing data discrepancies.
• The Outcome: Analysts query a clean, organized, star-schema relational structure, avoiding double-counting and siloed numbers across standard business reports.

Data Product B (High-Concurrency Denormalized Reporting):

• The Challenge: Business users and high-concurrency reporting tools required sub-second visual rendering on massive, multi-dimensional operational datasets. Running runtime SQL joins over separate relational tables led to high interactive compute usage and sluggish dashboard performance.
• The Implementation: We flattened the Silver Data Vault tables directly into a One Big Table (OBT) architecture. By shifting the computational join overhead upstream into regular batch processing pipelines, we pre-assembled the required factual metrics and dimensions into the Gold OBT.
• The Outcome: Because Databricks utilizes highly optimized columnar storage (Parquet/Delta) and file pruning, querying the pre-joined OBT completely bypassed runtime joins. The heavy computational lifting is handled incrementally on ingest or scheduling, enabling operational report rendering to execute instantly for hundreds of concurrent analysts with minimal query latency.

This means for you: By decoupling your central data vault (Silver) from your consumption layer (Gold), you do not have to compromise between governance and speed. Your corporate accountants query Kimball star schemas, while your high-concurrency dashboards consume pre-flattened OBT arrays—all running off the same, integrated data foundation on Databricks.

Case Study in Migration: Replatforming a Regional Utility's Legacy Data Vault

While a hybrid architecture manages both speed and auditability from day one, many enterprise organizations find themselves inherited with a legacy, on-premise Data Vault setup that has grown too rigid to support modern, high-frequency data streams.

Our practice solved this exact challenge for a leading European energy utility managing regional electricity and gas networks.

The Challenge: IoT Scale vs. Traditional Storage

The rollout of millions of smart meters and IoT sensors generated massive, high-velocity datasets that overwhelmed the company's legacy Data Vault, which was built on traditional relational SQL databases. Ingestion delays and query bottlenecks made near-real-time network tracking and billing analytics impossible. The Data Vault's highly fragmented nature meant that even basic operational reports required executing massive networks of SQL joins on resources that were already bottlenecked.

The Solution: The Medallion Lakehouse on Microsoft Fabric

We designed a complete migration from their legacy SQL-based Data Vault to a modern, medallion-style Lakehouse architecture running on Azure Synapse Analytics and Microsoft Fabric:

• Bronze (Raw Ingestion): We established continuous ingestion pipelines for high-frequency smart meter readings using PySpark, storing the raw, unchanged data in a decoupled Azure Data Lake (ADLS Gen2).
• Silver (Integration & Standardization): We translated the raw metrics into a clean, uniform, integrated data foundation. Instead of navigating dozens of separate physical Hub and Link tables, we consolidated relationships within optimized, column-oriented Delta files.
• Gold (Business Consumption): We leveraged Microsoft Fabric to provision decoupled, application-specific data products. For standard operations, we built conformed dimensional structures for self-service Power BI reporting. For advanced teams, clean data products were piped directly into behavioral customer clustering models (built with Scikit-learn) and predictive load forecasting algorithms.

The "So What?" (Client Value Translation)

By migrating from a legacy SQL Data Vault to a PySpark-driven Lakehouse, the utility transformed its data platform from a bottleneck into a real-time asset:

• Zero Ingestion Lag: Smart meter data is ingested and processed in near-real-time, giving Grid Operators immediate visibility to address outages and balancing anomalies.
• Agility & Low Maintenance: Schema changes on upstream source systems no longer trigger cascading rebuilds of database tables.
• Self-Service Autonomy: Business domain teams can self-provision reporting views without waiting for central IT, shortening delivery time-to-market for new analytics from weeks to minutes.

Conclusion: The Modern Reality is Hybrid

So, which framework wins the crown? The short answer is: there is no single “winner.” Cloud technology didn't kill the classics; it simply expanded our toolkit. While Kimball’s dimensional modeling still excels at intuitive business reporting and Inmon provides a highly disciplined enterprise structure, successful modern strategies have abandoned the rigid, single-framework mindset. Instead, they embrace a multi-layered, hybrid approach designed to maximize data utility across entirely different use cases.

In practice, this means decoupling your architecture into specialized layers. Teams frequently leverage Data Vault in the "Silver" storage layer to ingest diverse data streams quickly while maintaining an unalterable audit trail. Downstream, that vault data is transformed into Kimball dimensional star schemas or One Big Table structures in the "Gold" presentation layer. This layered strategy ensures the underlying infrastructure remains scalable and agile, while business consumers enjoy rapid, straightforward access to insights.

By separating how you ingest data from how you consume it, you stop treating data modeling as a restrictive engineering constraint. Instead, you turn it into an adaptable engine—giving your business the perfect balance of backend agility and rapid, actionable insights for every single use case.
